How to change the in tank fuel pump on a Range Rover P38

The Range Rover P38 fuel tank pump in situChanging the in tank fuel pump on the Range Rover filled me with dread. It needed changing as the fuel gauge was sticking, and giving me an inaccurate reading - and the fuel gauge sender is on the same unit as the pump - so the whole assembly has to be changed. In addition, I had doubts that the pump was actually working due to my cold starting problems.

The reason for dread is that usually the whole fuel tank has to be drained, and the fuel tank removed from under the car - which results in a lot of shuffling around on the cold concrete under the car.

It got me wondering "there must be a better way of doing this!"

So whilst researching the job, I stumbled across a thread on the Landyzone forums, where the forum member "Canyon" had worked out the exact measurements of where to cut a hole in the boot floor so you can extract the pump without having to drop the tank! Bingo!

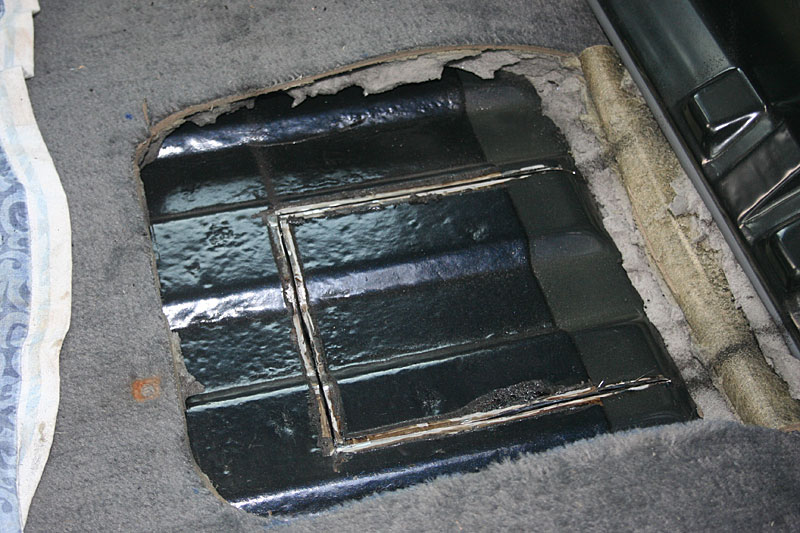

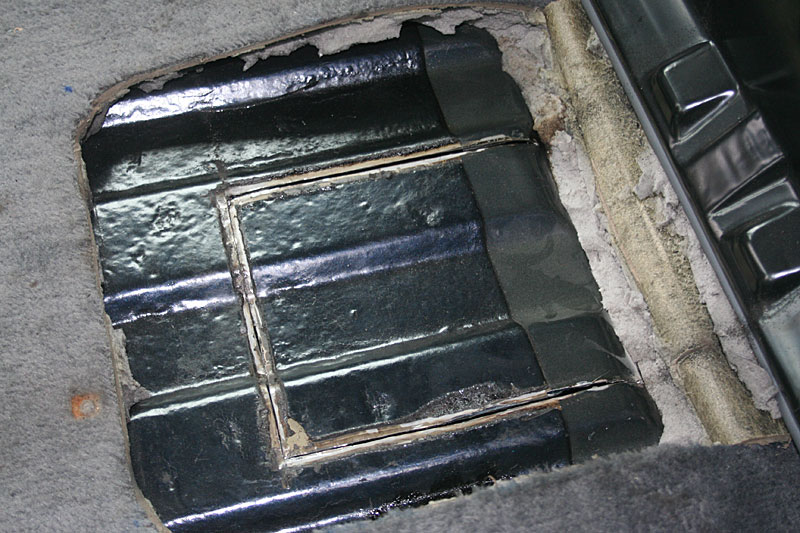

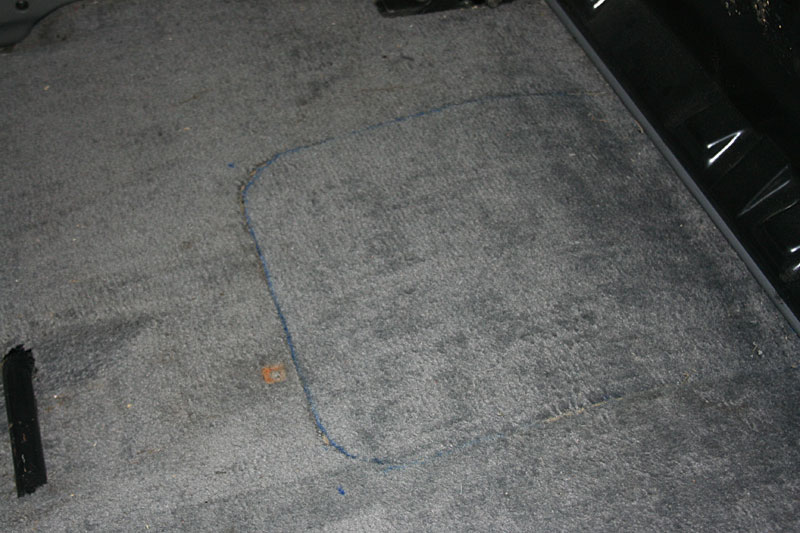

So this is the route we went down - cut a hole in the floor! This way if we ever had to get access to the pump/fuel lines/wiring then we will have hatch in the floor ready to go.

The whole job took approximately an hour and a half to do, and was much easier/quicker than dropping the tank. Just make sure that once you have access to the old pump, meticulously clean the entire area, so no dirt can fall into the fuel tank.

For reference, here are the part numbers for the pumps depending on if you have a petrol or diesel Range Rover:

  • Petrol V8: STC4344
  • Diesel: ESR1111

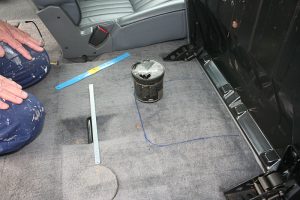

So as all of the instructions on how to do this are covered in the Landyzone forum thread, here is my photo report on the job. Remember, double check all measurements - measure twice, cut once!

Photo report: Changing the fuel pump on a Range Rover P38

Results

So now I have a fuel tank pump that I know is good for thousands of miles, and a fuel gauge which works properly. No change in the cold starting problems, so next up is the glow plugs!

Tags

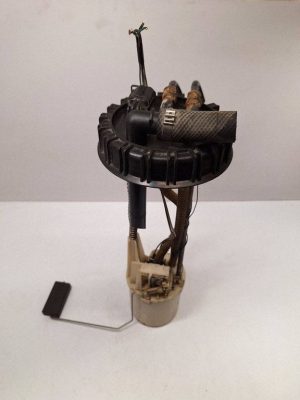

Range Rover P38 46 40 V8 Genuine Petrol In Tank Fuel Pump 94 98 STC4344
